Strip Curtain Header Rails

One of the easiest and cost effective ways to provide effective screening from dust, wind, birds and insects.

OverviewResourcesHead vs Face FixVisor-RailStainless Steel Hook HeaderScandi Sliding TrackOrder FormEnquire

U

Various header rails to suit all customer requirements

U

All strip widths can be accommodated

U

Industry standard strip overlaps

Header Rails

Our large range of face-fixed & head-fixed, sliding & hook headers are available to suit any requirement. Locally sourced products provide high levels of stock availability. Durable & easy to maintain. They are designed to meet all New Zealand regulations & conditions.

Resources

Order Form

Enquiries

Head vs Face Fix

The largest range available in Australasia, including several of our own designs, tailored to meet New Zealand conditions and regulations.

The majority of styles are designed to “face-fix” to a vertical plane above the door, but some “head-fix” styles are carried for when the header must be fixed to a horizontal plane, eg in a corridor. Curtains can also be supplied on sliding track.

Standard Light Weight
Visor-rail – Face-fixing

For strip widths of up to 200mm wide.
Satisfies MPI Dairy requirements.
Can be modified to suit head fixing if required.
Accommodates mounting by Tek-screws or rivets.

Visor-rail

The largest range available in Australasia, including several of our own designs, tailored to meet New Zealand conditions and regulations.

The majority of styles are designed to “face-fix” to a vertical plane above the door, but some “head-fix” styles are carried for when the header must be fixed to a horizontal plane, eg in a corridor. Curtains can also be supplied on sliding track.

Heavy Duty
Visor-rail – Face-fixing

For strip widths of up to 400mm wide & PVC Sheet.

Satisfies MPI Dairy requirements.
Can be modified to suit head fixing if required.
Accommodates mounting by Tek-screws or rivets.

Stainless steel hook header

The largest range available in Australasia, including several of our own designs, tailored to meet New Zealand conditions and regulations.

The majority of styles are designed to “face-fix” to a vertical plane above the door, but some “head-fix” styles are carried for when the header must be fixed to a horizontal plane, eg in a corridor. Curtains can also be supplied on sliding track.

Stainless Steel (312)
hook header – Face-fixing

For strip widths 200mm, 300mm or 400mm.
Accommodates mounting by rivets, Tek-screws or nylon mushroom bolts.

Stainless Steel (312)
hook header – Head-fixing

For strip widths 200mm, 300mm or 400mm.
Accommodates mounting by rivets, Tek-screws or nylon mushroom bolts.

Stainless Steel (201)
hook header

For strip widths 100mm, 200mm, 300mm or 400mm.

Accommodates mounting by rivets, Tek-screws or nylon mushroom bolts.

Accommodates face fixing & head fixing.

Scandi sliding track – Face-fixing

Accommodates 200 & 300mm strip, sheet PVC. Also 100 and 400mm strip subject to limitations.

Allows face or head fixing.

Locking pull cords prevent ‘wandering’.

Multiple bearing wheels provide effortless tracking.

Scandi sliding track

Designed in Scandinavia specifically for PVC strip curtains, the Scandi track allows the curtain to slide out of the way. The continuous strip carrier eliminates any leakage gaps between the rollers and the track.

Multiple bearing-race rollers make opening and closing effortless. The slim profile of the track gives a smart appearance and also allow a variety of fixing methods to be used.

Order your
Header Rails now

Order form

Call us free on: 0800 267 888

The easiest way to contact us is via our call free 0800 number: 0800 267 888.

Alternatively, you may email us at: sales@flexibledoors.co.nz

Contact Us - Strip Curtain Header Rails

7 + 11 =

Related Products

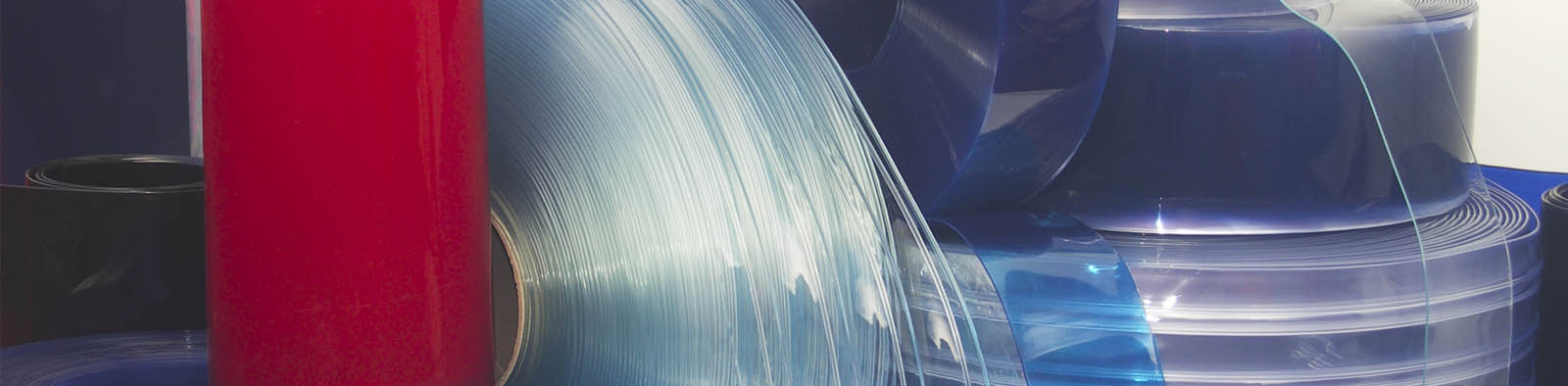

PVC Strip and Sheet
