Clearway PVC Swing Doors

PVC swing doors are “hands free”, impact operated doors. Their double action springs allow them to open from either side, swinging through a 180˚ arc and self returning to the centre line of the doorway, while the flexible PVC door leaves absorb the shock and noise of repeated impact without either suffering or inflicting damage.
U

Specific blade designs to suit specific requirements

U

Frames are able to be powder coated to suit your requirements

U

Black textured PVC

Clearway PVC Swing Doors

Translucent PVC leaves afford good two way vision, minimising the risk of collisions while maximising available light. They are especially useful in busy traffic situations where tight environmental control is required without impeding traffic flows.

Resources

CAD Drawings

Brochure

Enquiries

Order Form

The Clearway Advantage

Hygienic construction

  • Silver anodised or powder coated aluminium stiles and head – corrosion free.
  • Stainless steel components.
  • Top quality finish PVC panels – easily cleaned.
  • Welded stainless steel corner brackets –the strength of steel assembly to resist damage due to repeated impact.
  • Choice of two types of flexible seal around jambs and head to avoid leakage:
    -PVC for food and wet wash areas.
    -Fibre brush for dry areas.
  • PVC leaves reinforced at vulnerable points– reduces tearing of PVC and prolongs life.
  • Unique tension system – exerts a constant tension on door leaves throughout the whole swinging arc.
  • Head and side fixing – for maximum strength and flexibility of installation.
  • Anti-fall strops – prevent doors falling in the event of a major collision.
  • Environmentally safe – only PVC formulated to top quality European specifications and totally free of all carcinogenic plasticisers and additives used. Totally safe to recycle.
Door Sizes
Small Large
Traffic: Pedestrians / pallet lifters Fork lifts
Max Size* Single leaf – 2500H x 1250W
Double leaf – 2500H x 2500W
3500H x 1500W
3500H x 3000W
PVC Thickness 7.0mm clear, 7.0mm textured black or 7.0mm textured clear

*To avoid putting undue stress on the PVC leaves, doorways should ideally be half as wide again as the traffic transiting them i.e. traffic should not take up more than 2/3 of the opening width.

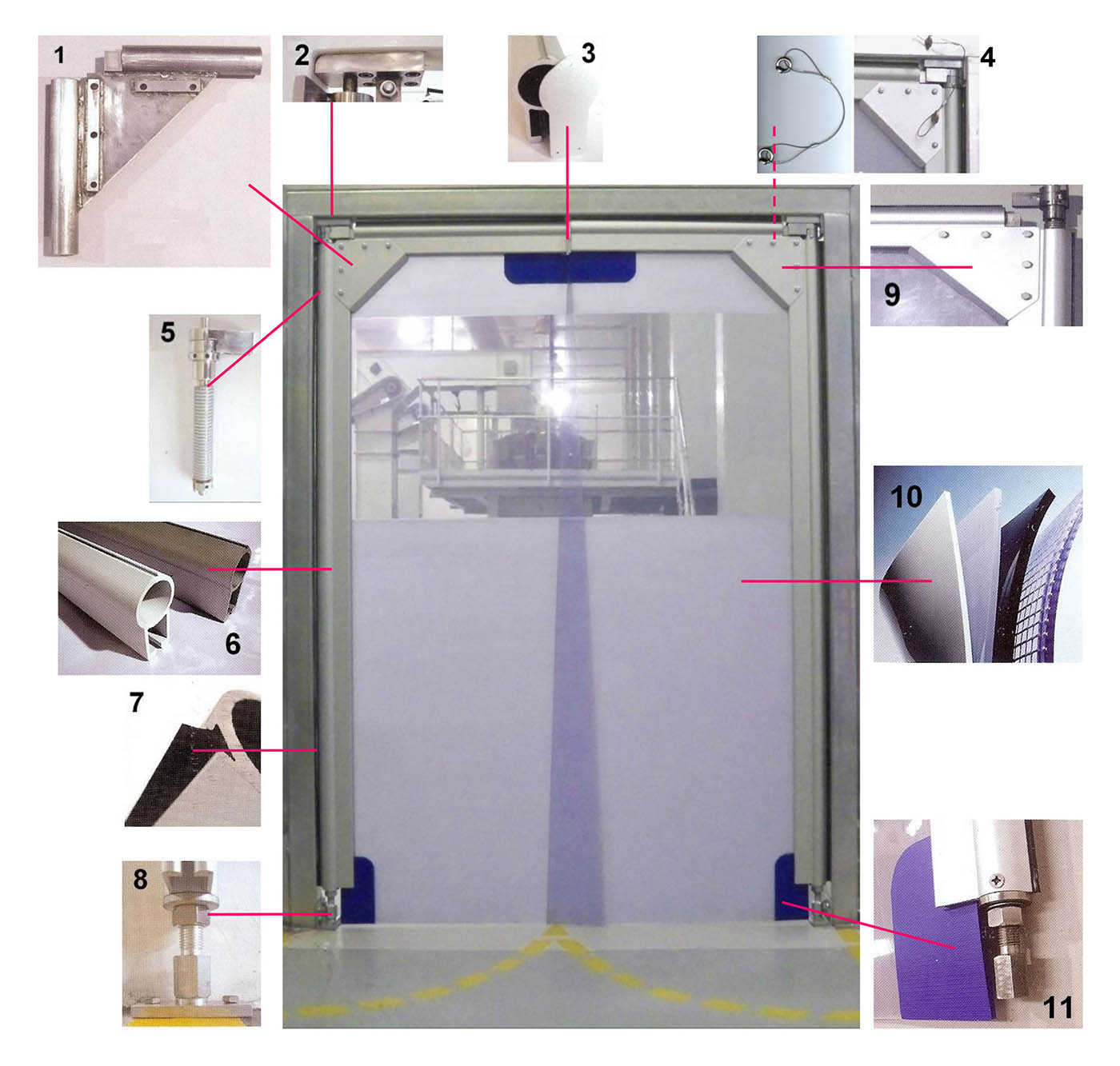

Construction Benefits of the “Clearway” Swing Door

High strength, welded steel corner assembly.
Top fixing plate – accommodates head and side fixing for maximum purchase.
Flush fitting end caps to close off head profile.
High strength steel cable fall restraint – prevents door falling in event of major collision.
Double acting, variable tension return spring housed in stile.
HD corrosion free extruded aluminium stile and head profiles – silver anodised or powder coated.
Seals around three sides – choice of fibre brush for dry areas or PVC for wet / hygiene areas.
Robust, heavy duty bottom jack with ball bearing pivot and generous adjustment. Accommodates floor and / or side fixing
Corner cover plates for hygienic, aesthetic finish.
Choice of flexible PVC door leaves – 5.0 to 7.0mm, clear, textured or reinforced. No fasteners through PVC – leaves “float” in stile and head to accommodate temperature changes.
Laminated reinforced PVC patches to strengthen tear prone points.

Options

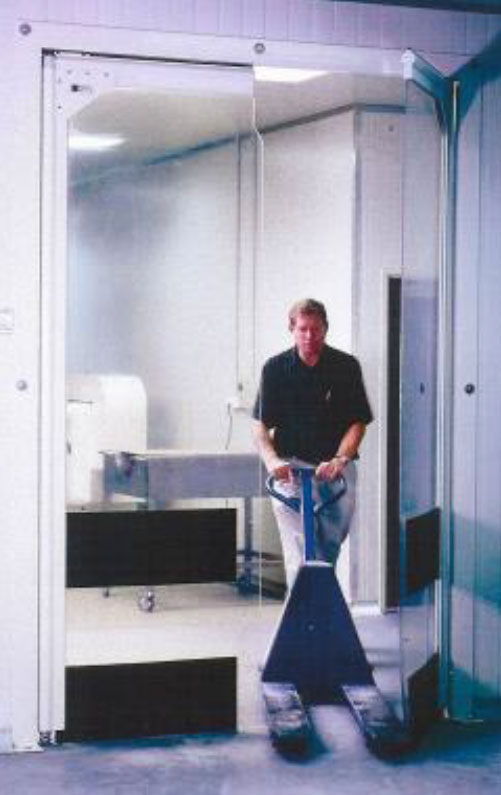

Traffic buffers

Gloss finish, reducing friction and preventing scouring of PVC.

Pallet / boot pads

Gloss finish, at base of door leaves, prolonging panel life.

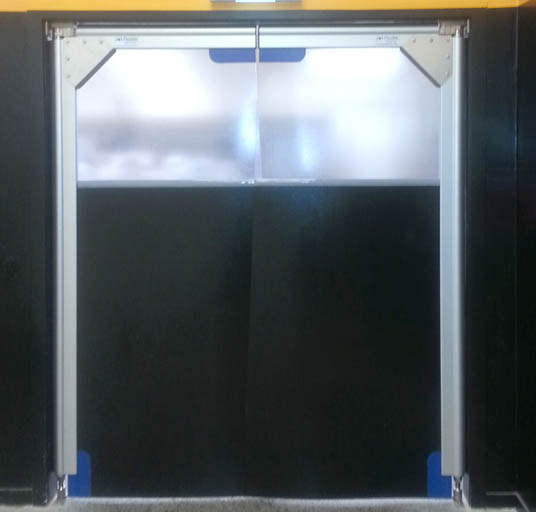

Textured Black up to 1200mm high

with clear above for maximum light and vision.

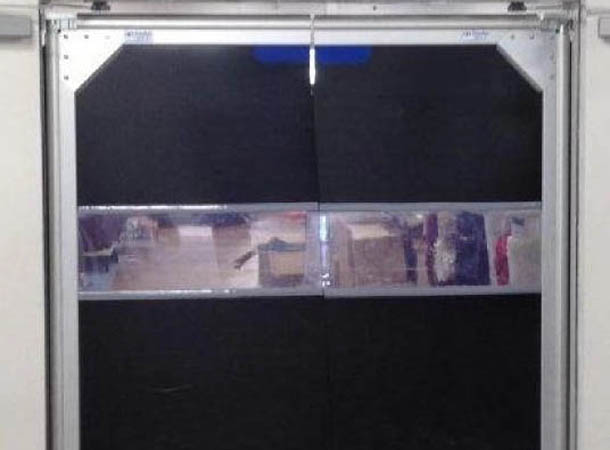

Textured Black

With clear vision panel for privacy

Options

Traffic buffers

Satin finish, reducing friction and preventing scouring of PVC.

Pallet / boot pads

Satin finish, at base of door leaves, prolonging panel life.

Reinforced PVC

Nylon mesh for heavy duty traffic applications and/or partial vision block.

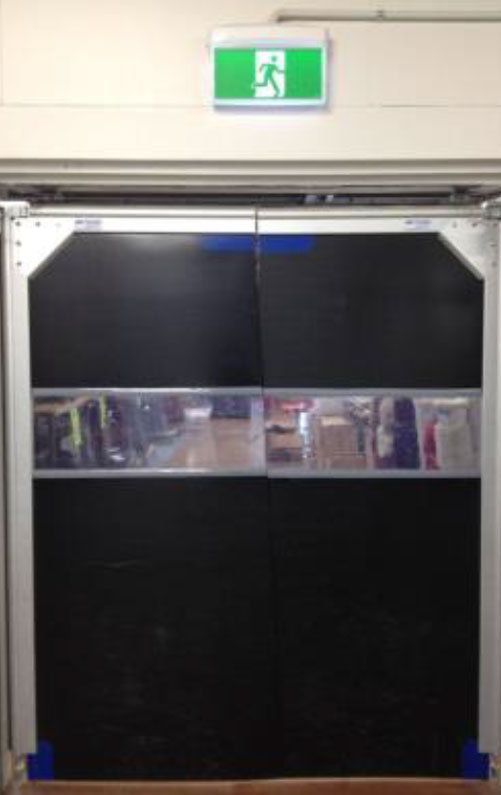

Textured Black

With clear vision panel for privacy

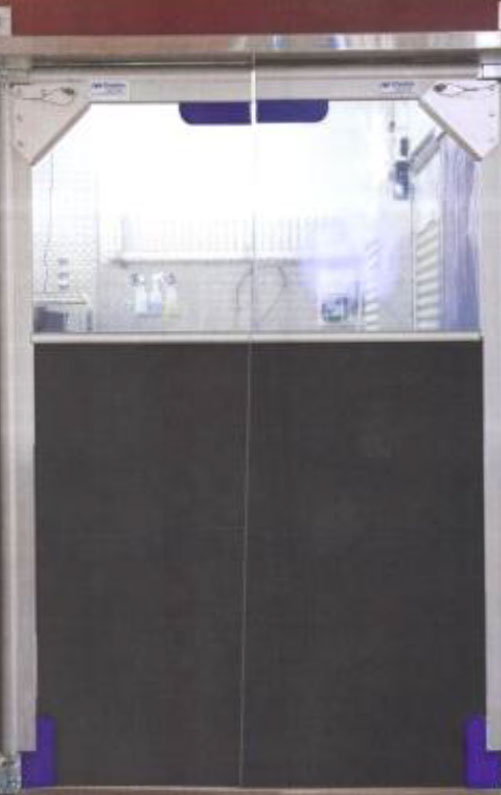

Textured Black up to 1200mm high

with clear above for maximum light and vision.

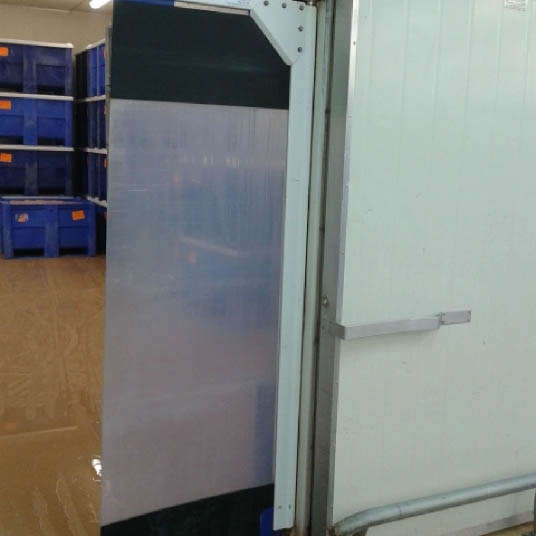

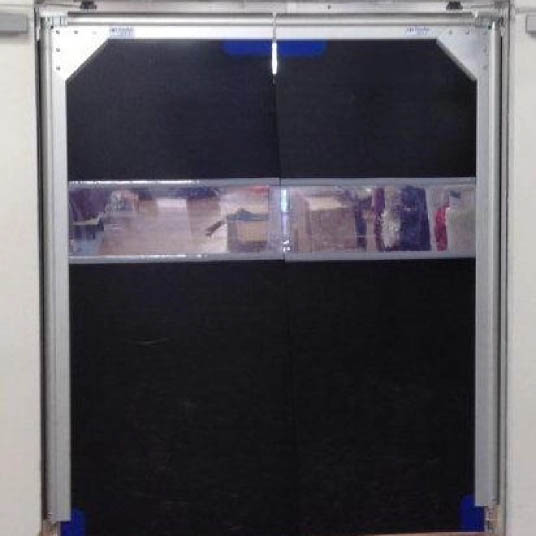

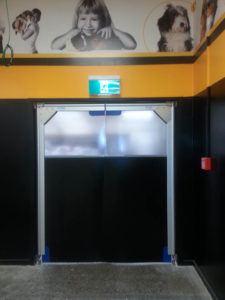

Clearway PVC Swing Doors Gallery
