Grothaus Swing Door

The trailblazing solid panel swing door that is built to last, no matter what gets thrown at it
OverviewResourcesApplications & BenefitsDimensionsVision PanelsFramesOptionsColoursDetailsGalleryOrder FormEnquire
U

Various options of vision panel to suit specific site requirements

U

High Impact Polythene door blades are designed to take punishment

U

Stainless Steel Hinges that are built to last

Grothaus Swing Door

The Grothaus swing doors are quite simply in a class of their own.

Built to last, our Grothaus swing doors are the class leading, solid panel swing doors. Hard wearing, maintenance free hinges, allow for a long-term solution. Finger protection, windows, PE & tear drop bumpers. Options to suit every specific client. These all come together for a solution that lasts. Favoured by Foodstuffs & Progressive Enterprises.

Resources

CAD Drawings

Brochure

Enquiries

Order Form

Applications and Benefits

Applications
  • Food Industry (meat processing, bakeries)
  • Cold Stores
  • Retail and Supermarkets
  • Hotels and Restaurants
  • Industrial Kitchens
10 Benefits
  • Made of solid material – not breakable
  • Hygienic (EU/FDA approved)
  • Maintenance-free
  • Made to measure
  • Short production time
  • Long service life
  • 10 year guarantee on door leaves
  • Easy installation
  • Worldwide shipping
  • 100% made in Germany

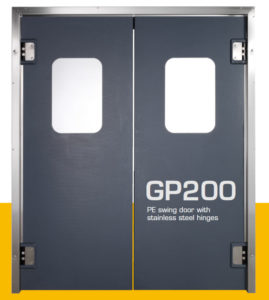

Key Features and Specs

Key Features

  • High Impact, rigid Polyethylene swing doors for high standards of hygiene, bakery, meat, dairy, produce and frozen departments
  • Stainless steel hinges – adjustable tension for heavy duty continuous use (Maintenance free) 90⁰ Hold Open Available at no extra cost.
  • Frameless 15mm acrylic windows, 400W x 600H.
  • Satin black spring buffers both sides at base of leaves.
  • PE bumpers at mid impact point both sides of leaves (200 x 15mm) X2
  • Temperature range -30°C to 60°C
  • PVC finger protection starting 1150mm from base of leaves.
  • Stainless steel mounting frame plates.
  • WARRANTY Five Years Material & Workmanship (Door blades guaranteed for Ten years, warranty excludes windows, PVC finger protection & bumpers)
Door Panel

Pedestrians to trucks

Stainless Steel Hinges

Pedestrians to trucks

Dimensions

Special dimensions on request

Vision Panels

Standard Dimensions:

Acrylic glass, 15 mm (½”) frameless and flush-fitting
Special designs on request

400 mm round

(Ø 15 ¾”)

300 x 600 mm

(11 ¾” x 23 ½”)

400 x 600 mm

(15 ¾” x 23 ½”)

400 x 950 mm semicircular

(15 ¾” x 37 ½”)

Vision Panels

Standard Dimensions:

Acrylic glass, 15 mm (½”) frameless and flush-fitting
Special designs on request

400 mm round

(Ø 15 ¾”)

300 x 600 mm

(11 ¾” x 23 ½”)

400 x 600 mm

(15 ¾” x 23 ½”)

400 x 950 mm semicircular

(15 ¾” x 37 ½”)

Frames

Stainless steel mounting plate or flat bar profile (1.4301)

Ready to be screwed to stone walls or steel beam
In door height, ready to be screwed to stone wall or steel beam

Stainless steel U-profile frame (1.4301)

Edges folded for a wall thickness of 60 mm – 400 mm (2 ¼” – 15 ¾”)
For easy installation to insulating panels or plasterboard

Stainless steel rectangular tube frame (1.4301)

100 x 50 mm (4″ x 2″), ready for front-wall installation to stone walls or plasterboard

Options

Bumpers

Bumper made of PE 15 mm (½”),
200 mm (7 ¾”) high on both sides
Variable installation height

Finger Protection

PVC finger protection combined with round edge.
Variants:
– Round edge
– PVC finger protection in door height

Bumpers

Spring bumper made of PE,
200 – 1200 mm
(7 ¾” – 47 ¼”) high on both sides
Variable installation height

Lock

Stainless steel lock Lockable on both sides
Can be top-mounted (single door/pair) or side-mounted (single door)

Options

Bumpers

Bumper made of PE 15 mm (½”),
200 mm (7 ¾”) high on both sides
Variable installation height

Finger Protection

PVC finger protection combined with round edge.
Variants:
– Round edge
– PVC finger protection in door height

Bumpers

Spring bumper made of PE,
200 – 1200 mm
(7 ¾” – 47 ¼”) high on both sides
Variable installation height

Lock

Stainless steel lock Lockable on both sides
Can be top-mounted (single door/pair) or side-mounted (single door)

Colours

  • 9010
    White
  • 1018
    Yellow
  • 3000
    Red
  • 6024
    Green
  • 5010
    Blue
  • 7035
    Light Grey
  • 7037
    Dusty Grey
  • 7024
    Graphite Grey
  • 8012
    Red Brown
* Minimum quantities and prices on request. All RAL colours on request. Any colour deviations from the RAL scale are due to the printing process.

Learn more about Grothaus

U

Frames to suit any wall construction

U

Frameless windows

U

Bumpers to provide additional protection

The Trailblazer

Grothaus doors are engineered to last all the rigours that can be thrown at them. See below to get just an indication of their performance.
Made to measure, made of solid material – not breakable
Approved by food regulations (EU/FDA approved)
Stainless steel hinges – adjustable tension for heavy duty continuous use (Maintenance free)
Long service life

5 year guarantee on the hinges, with the door leaf getting a 10 year guarantee

Grothaus Swing Door Gallery

Order your
Grothaus Swing Door now
